Semi Tubular Rivets

Dimension "L" Determined By Application

Jay-Cee Sales and Rivet Inc. offers a large selection of semi tubular and tubular rivets. For more information or to place your order, Call us today!

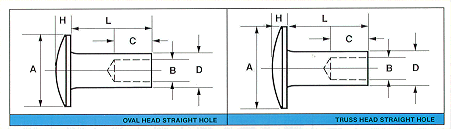

Semi Tubular Rivet Specifications DIMENSION "L" DETERMINED BY APPLICATION
Nominal Shank Diameter	Shank Diameter D		Head Style	Head Diameter A		Head Thickness H		Hole Diameter B		Hole Depth C	Suggested Clinch Allowance	Hole Dia. in Assembly
Nominal Shank Diameter	Min.	Max.	Head Style	Basic	Tol.	Basic	Tol.	Min.	Max	Hole Depth C	Suggested Clinch Allowance	Hole Dia. in Assembly
1/16	0.058	0.061	Oval	0.109	± .005	0.017	± .002	0.039	0.044	0.046	0.040	0.067
1/16	0.058	0.061	Truss	0.125	± .005	0.017	± .002	0.039	0.044	0.046	0.040	0.067
3/32	0.085	0.089	Oval	0.147	± .005	0.023	± .003	0.062	0.068	0.064	0.045	0.093
3/32	0.085	0.089	Truss	0.187	+ .005	0.023	± .003	0.062	0.068	0.064	0.045	0.093
3/32	0.095	0.099	Oval	0.156	± .005	0.023	± .003	0.070	0.076	0.077	0.050	0.100
3/32	0.095	0.099	Truss	0.187	± .005	0.029	± .003	0.070	0.076	0.077	0.050	0.100
1/8	0.118	0.123	Oval	0.218	± .005	0.034	± .004	0.084	0.090	0.094	0.075	0.128
1/8	0.118	0.123	Truss	0.281	± .005	0.034	± .004	0.084	0.090	0.094	0.075	0.128
9/64	0.141	0.146	Oval	0.234	± .005	0.040	± .005	0.100	0.107	0.126	0.092	0.152
9/64	0.141	0.146	Truss	0.312	± .006	0.040	± .005	0.100	0.107	0.126	0.092	0.152
5/32	0.151	0.156	Oval	0.312	±..006	0.046	±..005	0.110	0.117	0.155	0.096	0.165
5/32	0.151	0.156	Truss	0.328	± .006	0.046	± .005	0.110	0.117	0.155	0.096	0.165
3/16	0.182	0.188	Oval	0.312	±..006	0.060	±..005	0.134	0.141	0.155	0.120	0.196
3/16	0.182	0.188	Truss	0.375	±..006	0.060	±..005	0.134	0.141	0.155	0.120	0.196
1/4	0.244	0.252	Oval	0.437	± .007	0.068	± .007	0.176	0.184	0.219	0.157	0.265
1/4	0.244	0.252	Truss	0.500	± .007	0.078	± .007	0.176	0.184	0.219	0.157	0.265
5/16	0.302	0.310	Oval	0.500	± .008	0.093	± .007	0.211	0.219	0.243	0.188	0.328
5/16	0.302	0.310	Truss	0.562	± .008	0.093	± .007	0.211	0.219	0.243	0.188	0.328
3/8	0.370	0.380	Oval	0.500	± .008	0.125	± .007	0.276	0.286	0.281	0.219	0.390
3/8	0.370	0.380	Truss	0.750	± .010	0.156	± .007	0.276	0.286	0.281	0.219	0.390
Note: Special Sizes or Tolerances Quoted upon request. Note: Not responsible for errors in data tables. Please check with our sales department to confirm specs.
